The role of lichen communities in superficial deterioration of their rock substrates: studies of the lichen-rock interface of two historical buildings in the City of Guanajuato, Mexico

Abstract

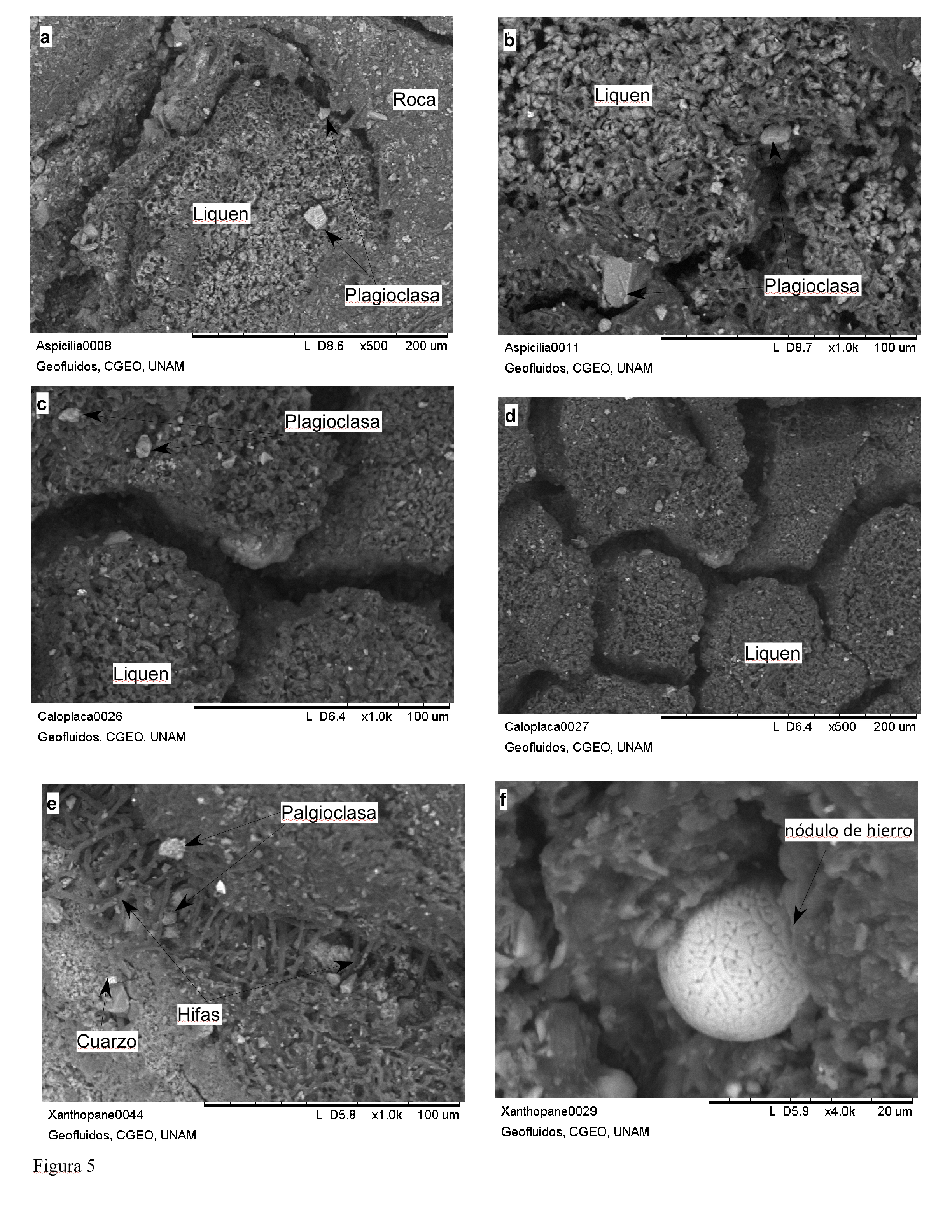

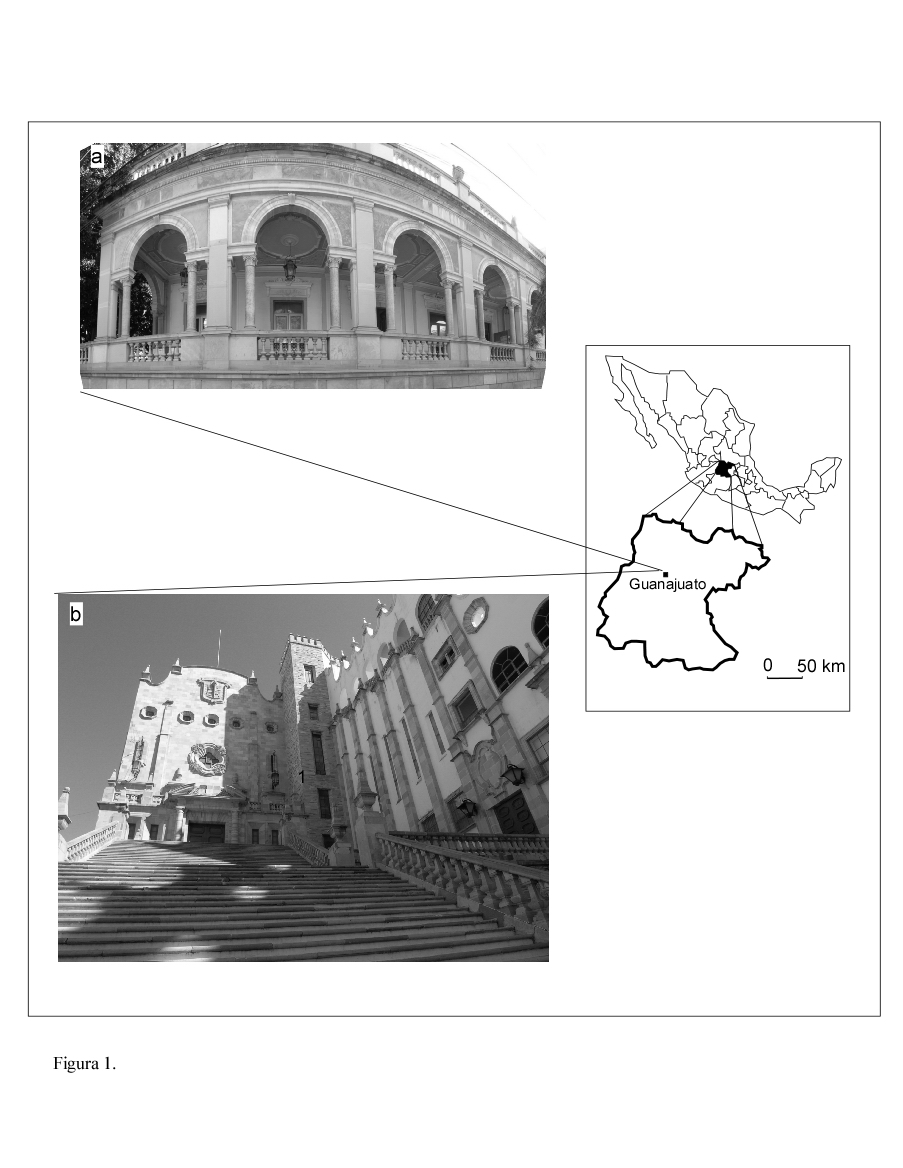

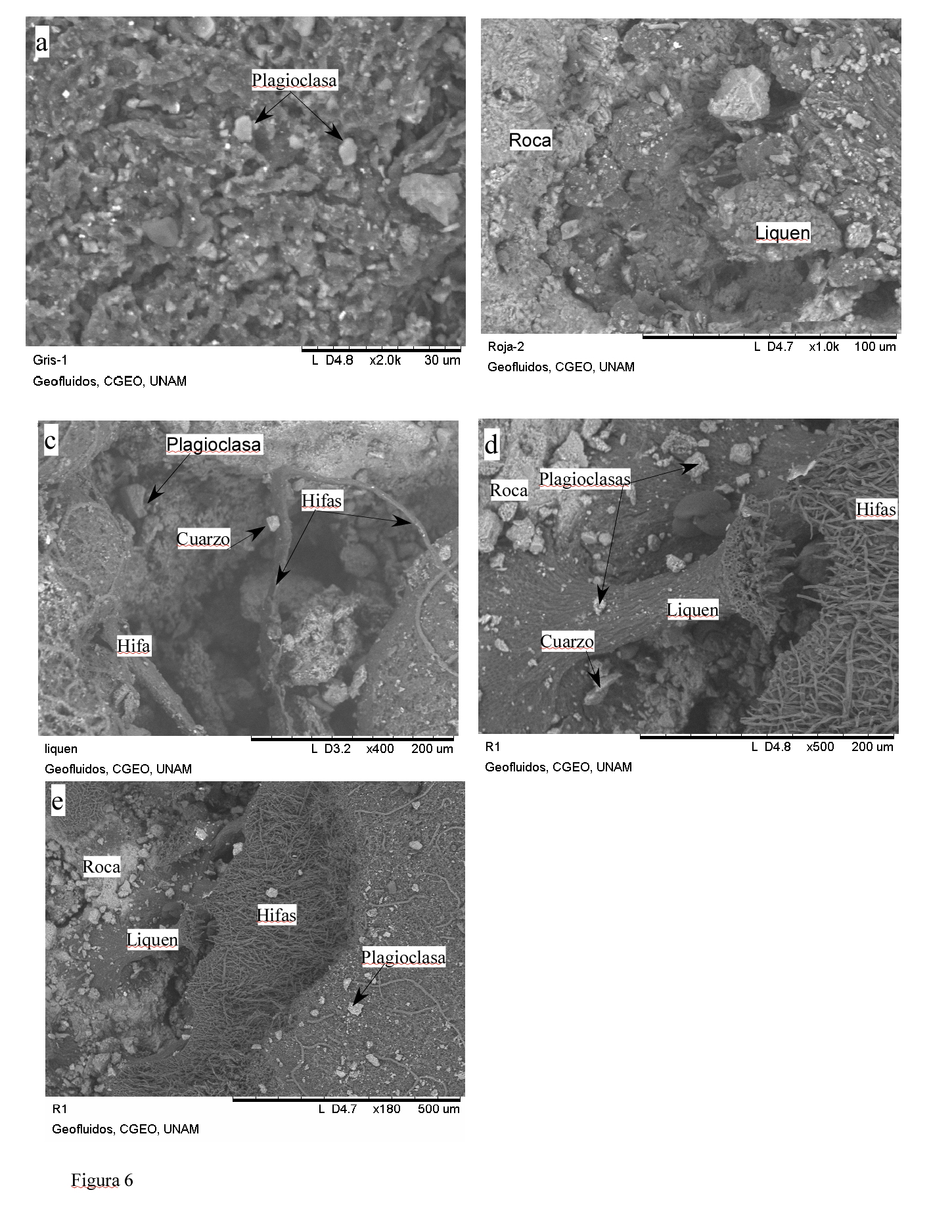

In this paper we present the deterioration processes that exert lichen communities in siliceous sandstones of two historical monuments of the nineteenth and twentieth Centuries of the Guanajuato city (steps of the Guanajuato University and the School of Music at the Guanajuato University). In addition to contributing to the knowledge of deterioration, data on the lichen species found, is provided, the causes of its growth and its role in the deterioration of the stone material, in order to implement measures of protection and prevention. The lichen-rock interface was observed using complementary techniques such as, optical microscopy, scanning electron microscopy (SEM), transmission electron microscopy (TEM), Inductively Coupled Plasma) (ICP), and energy dispersive spectroscopy X-ray (EDS). Were identified five species of lichens: Xanthoparmelia mexicana, Xanthoparmelia tasmanica; Caloplaca aff. brouardii, Caloplaca aff. ludificans and Aspicilia sp. These lichens penetrate 0.5 µm to 50 µm on the substrate through its rhizines, causing disintegration of minerals in the rock surface (plagioclase, quartz and feldspar). The disintegration of minerals along with the changes in chemical composition in the lichen-rock interface shows a negative action on the rocky surface, (the decrease in SiO2, Al2O3, Zn, and K2O and the presence of a high percentage in CaO, Fe2O3, and MgO).


https://doi.org/10.15174/au.2015.781
PDF (Español (España))
HTML (Español (España))

References

Ascaso, C. (1984). Structural aspects of lichens invading their substrata. In C. Vicente, D. H. Brown & M. E., Legaz (Eds.). Surface Physiology of Lichens.Madrid: Universidad Complutense.


Ascaso, C., Galván, J., & Rodríguez-Pascual, C. (1976). Studies on the pedogenetic action of Lichen acids. Pedobiología, 16, 321-332.


Ascaso, C., Sancho, L. G., & Rodríguez-Pascual, C. (1990). The weathering action of saxicolous lichens in maritime Antarctica. Polar Biology, 11(1), 33-39.


Ascaso, C., & Wierzchos, J. (1994). Structural aspects of the lichen–rock interface using back scattered electron imaging. Botanica Acta, 107(4), 251-256. doi: 10.1111/j.1438-8677.1994.tb00793.x


Braams, J. (1992). Ecological studies on the fungal microflora inhabiting historical sandstone monuments. Oldenburg: University of Oldenburg.


Chen, J., Blume, H. P., & Beyer, L. (2000). Weathering of rocks induced by lichen colonization — a review. Catena, 39(2), 121-146. doi: 10.1016/S0341-8162(99)00085-5


Crisci, G. M., Gattuso, C., Macchione, M., & Miriello, M. (28-29 October 2005). Analisi dei meccanismi di degrado dei materiali calcarenitici dovuto all’azione dei licheni. Proceedings of the Workshop: L’approccio multidisciplinare allo studio ed alla valorizzazione dei Beni Culturali (pp. 187-197), Siracusa, Italy.


De los Ríos, A., Wierzchos, J., Sancho, L. G., Green, T. G., & Ascaso, C. (2005). Ecology of endolithic lichens colonizing granite in continental Antarctica. The Lichenologist, 37, 1-13. doi: 10.1017/S0024282905014969


Eckardt, F. E. W. (1985). Solubilization, transport and deposition of mineral cations by microorganisms. Efficient rock weathering agents. In J. L., Drever (Ed.), The chemistry of weathering. Dordretch, Netherlands: Reidel Publishing Co.


Eckardt, F. E. W. (1990). Zum Vorkommen und Verhalten von Mikroorganismen in Bausteinen und Putzen In E. Emmerling et al. (Eds.),Konservierung und Restaurierung von verputzten Mauerwerken. S. Bayer. landesamt f (pp. 161-173). Denkmalpflege, Munchen. Reidel Publishing Company, Boston.


Favero-Longoa, S. E., Gazzanoa, C., Girlandaa, M., Castellib, D., Tretiachc, M., Baiocchid, C., & Piervittoria, R. (2011). Physical and Chemical Deterioration of Silicate and Carbonate Rocks by Meristematic Microcolonial Fungi and Endolithic Lichens (Chaetothyriomycetidae). Geomicrobiology Journal, 28(8), 732-744. doi: 10.1080/01490451.2010.517696


Galun, M., & Ronen, R. (1988). CRC Handbook of lichenology. Vol. III, Boca Raton, Florida: CRC Press.


Guglielmin, M., Favero-Longo, S. E., Cannone, N., Piervittori, R., & Strini, A. (2011). Role of lichens in granite weathering in cold and arid environments of continental Antarctica. Geological Society, London, Special Publications, 354(1), 195-204. doi: 10.1144/SP354.12


Krumbein, W. E. (1972). Role des microorganismes dans la genese, la diagenese et la degradation des roches en places. Revue d’ecologie et de biologie du sol, 9, 283-319.


Krumbein, W. E. (1998). Mikrobenbefall und steinzerstorung autotroph order heterotroph? Chemisch order physikalisch? Strategies der verhinderung und behebung. Eine Bilenz 173-205. In R. Snethlage (Ed.), Denkmalpflege und Naturwissiens natursteinkonservierung H.Fraunhofer IRB Verlag Stuttgart.


Lee, M. R., & Parsons, I. (1999). Biomechanical and biochemical weathering of lichenencrusted granite: textural controls on organic–mineral interactions and deposition of silica-rich layers. Chemical Geology, 161(4), 385-397. doi: 10.1016/S0009-2541(99)00117-5


Lewis, F. J., May, E., & Bravery, A .F. (1988). Metabolic activities of bacteria isolated from building stone and their relationship to stone decay. Biodeterioration, 7, 107-112. doi: 10.1007/978-94-009-1363-9_13


McIlroy de la Rosa, J. P., Warke, P.A., & Smith, B. J. (2014). The effects of lichen cover upon the rate of solutional weathering of limestone.Geomorphology, 220, 81-92. doi: 10.1016/j.geomorph.2014.05.030


Nash III, T. H., Gries, C., & Bungartz, F. (2007). Lichen Flora of the Greater Sonoran Desert Region, vol.III. Lichen Unlimited (567 pp.)., Tempe, Arizona, U.S.A.: Arizona State University.


Nash III, T. H., Ryan, B. D., Diederich, P., Gries, C., & Bungartz, F. (2004). Lichen Flora of the Greater Sonoran Desert Region, vol. II. Lichen Unlimited (742 pp.). Tempe, Arizona, USA: Arizona State University.


Norma UNE-EN 1925:1999. “Métodos de ensayo para piedra natural. Determinación del coeficiente de absorción de agua por capilaridad”.


Norma UNE-EN 1926:2006. “Métodos de ensayo para piedra natural. Determinación de la resistencia a la compresión”.


Norma UNE-EN 1936:2006. “Métodos de ensayo para piedra natural. Determinación de la densidad real y aparente y de la porosidad abierta y total”.


Palinska, K. A., & Krumbein, W. E. (1998). Patterns of growth in coccoid, aggregate forming cyanobacteria. Annales Botanici Fennici, 35(3), 219-227.


Piervittori, R., Favero-Longo, S. E., & Gazzano, C. (2009). Lichens and biodeterioration of stonework: a review. Chemistry Today, 27(6), 8-11.


Puy Alquiza, M. J., Miranda-Avilés, R., Salazar, Ma del C., Vega, M., & Cervantes, J. (2013). Characterization petrophysical of the Losero Formation in the historical architecture of the Guanajuato city, Mexico. Revista Ingeniería Investigación y tecnología, XIV(2), 191-205.


Scarciglia, F., Saporito, N., La Russa, M. F., Le Pera, E., Macchione, M., Puntillo D., Crisci, G. M., & Pezzino, A. (2012). Role of lichens in weathering of granodiorite in the Sila uplands (Calabria, southern Italy).Sedimentary Geology, 280, 119-134. doi: 10.1016/j.sedgeo.2012.05.018


Warscheid, T., & Braams, J. (2000). Biodeterioration of stone: a review. International biodeterioration, and biodegradation, 46(4), 343-363. doi: 10.1016/S0964-8305(00)00109-8


Warscheid, T., & Krumbein, W. E. (1994). Biodeteriorationsprozesse an anorganischen Werkstoffen und mogliche GegenmaBnahmen. Werkstoffe und corrosion, 45(2), 105-113. doi: 10.1002/maco.19940450207


Warscheid, T., Oetling, M., & Kumbrein, W. E. (1991). Physico-chemical aspects of biodeterioration processes on rocks with special regard to organic pollutants. International Biodeterioration, 28(1-4), 37-48. doi: 10.1016/0265-3036(91)90032-M


Warscheid, T., Petersen, K., & Krumbein, W. (1988). Effect of cleaning on the distribution of microorganisms on rock surfaces. En D. Houghton, R. Smith & H. O. W. Eggins (Eds), Biodeterioration. New York, USA: Elsevier.


Wierzchos, J., & Ascaso, C. (1994). Application of back-scattered electron imaging to the study of the lichen–rock interface. Journal of Microscopy, 175(Pt 1), 54-59.


Wierzchos, J., & Ascaso, C. (1996). Morphological and chemical features of bioweathered granitic biotite induced by lichen activity. Clays and Clay Minerals, 44(5), 652-657. doi: 10.1346/CCMN.1996.0440507
