Synthesis, microstructural and optical characterization of
LiNbO3 thin films deposited by aerosol assisted chemical
vapor deposition
Síntesis, caracterización micro-estructural y óptica de películas delgadas de
LiNbO3 depositadas mediante depósito químico de vapor asistido por aerosol
Abstract
This work reports the synthesis, micro-structural characterization and optical properties of lithium niobate (LiNbO3) thin films deposited by aerosol assisted chemical vapor deposition (AACVD) on silicon substrates. The films deposited were polycrystalline, uniform, dense, non-light scattering and firmly adhered to the substrate. This was deduced from high resolution electron microscopy studies and spectral reflectance measurements. The films were not epitaxial; however, they are considered smooth enough to be employed in optical waveguide applications, since their roughness is very low compared to the wavelength of the utilizable radiation.
Resumen
En este trabajo se reporta la síntesis, la caracterización micro-estructural y las propiedades ópticas de películas delgadas de niobato de litio (LiNbO3) depositadas sobre sustratos de silicio mediante el método de depósito químico de vapor asistido por aerosol (AACVD). Las películas depositadas fueron poli-cristalinas, uniformes, densas, no dispersoras de luz y firmemente adheridas al sustrato. Esto se dedujo de la realización de estudios de microscopía electrónica de alta resolución y de mediciones de espectros de reflectancia óptica. Las películas no fueron epitaxiales, sin embargo, se considera que son suficientemente lisas para ser empleadas en aplicaciones de guías de onda ópticas, dado que la rugosidad es muy baja comparada con la longitud de onda de la radiación con posibilidades de uso.
Introduction
Lithium niobate (LiNbO3) is an extraordinary piezoelectric material which exhibits very strong electro-optic behavior and high photoconductive effects connected to high optical non-linearity. Some of these properties of LiNbO3 have been used in a large variety of optical devices including electro-optic modulators, frequency doublers, multiplexors and guided wave optics, among other applications of great interest (Arizmendi, 2004; Bornand, Huet, Bardeau, Chateigner & Papet, 2002; Suarez & Lifante, 2009; Wooten et al., 2000). The structural, electrical and optical properties of LiNbO3 have been studied intensively since they were available in large single crystals synthesized by the Czochralski technique in the mid 1960´s (Nassau, Levinstein & Loiacono, 1966). LiNbO3 typically presents a large concentration of intrinsic defects and can also be doped with a lot of different impurities. After controlling both the intrinsic defects and type of doping, it is possible to obtain a wide range of response variation (Arizmendi, 2004). Consequently, LiNbO3 has been the object of extensive research in order to know, understand, change and tailor its electrical and optical properties which could be required in a specific application. In fact, LiNbO3 could be one of the silicon substitutes in the areas of optoelectronics and photonics in the following years (Arizmendi, 2004). Nevertheless, thin films of this ferroelectric oxide have attracted a great deal of interest recently, mainly because it is not an expensive starting material for useful devices with potential use in the telecommunications area. On the other hand the confinement of electromagnetic waves expected in thin films is greater than in single crystals, which could yield for example electro-optic modulators with a lower drive voltage and higher band width (Arizmendi, 2004). Moreover, the growth procedure of bulk LiNbO3 single crystals is more complex than the one required to synthesize thin films of the same material. Growth of bulk single crystals by methods such as Czochralski, for example, requires high temperatures (over 1300 K), while the synthesis of films by any usual method requires temperatures around 600 K – 800 K. This provides an advantage to films over bulk samples. Therefore, development of new growing methods that permit to control the stoichiometry and provide a low temperature processing to obtain LiNbO3 thin films are required (Kao, Chen, Yang, Chen, Hsieh & Yu, 2008).
The aim of this work is to report the synthesis of high optical quality thin films of LiNbO3 obtained by AACVD, and its morphological, micro-structural and optical characterization.
Experimental details
This work reports the synthesis, micro-structural and optical characterization of LiNbO3 thin films deposited by the AACVD method onto (0 0 1) oriented silicon substrates (1.5 cm2 × 1.5 cm2). We have considered silicon substrates because nowadays a lot of optoelectronic devices are developed directly on silicon wafers. In consequence, it is relevant to determine the structural and optical properties of LiNbO3 thin films deposited onto silicon plates.
First, we optimized the deposition conditions to obtain LiNbO3 layers with a thickness of about 135 nm, and with a very low surface roughness (~10 nm). A deposition spraying setup described in figure 1 which is based on a pyrolytic system described elsewhere (Paraguay, Estrada, Acosta, Andrade & Miki-Yoshida, 1999) has also been used. The deposition system uses an ultrasonic nebulizer (a) working at 2.4 MHz to generate the aerosol that was conveyed by a carrier gas and directed towards the substrate by a fixed nozzle (c). The substrate is directly in contact with a metallic plate heated at the selected temperature. The carrier gas flow, the distance from the nozzle to the substrate and the time of deposition were also varied in order to determine the optimum deposition conditions. The starting solutions were dilutions of niobium ethoxide and lithium acetylacetonate in methanol employing concentrations of 0.02 mol dm-3 and 0.01 mol dm-3, respectively. The films were prepared at different temperatures between 623 K and 773 K. After deposition, a heat treatment was performed in order to stabilize the microstructure and enhance the crystallinity of the samples. The films were annealed during five hours at 900 K using linear ramps (1 K min-1) for both the heating and cooling stage to avoid any damage by thermal shock. Table 1 summarizes the principal synthesis conditions of the analyzed samples.
The surface morphology and films thickness were studied by field emission scanning electron microscope (SEM) using a JEOL JSM-7401F operated at 2 kV. The uniformity, compactness and continuity of thin films layer were determined by observing the surface morphology both before and after thermal treatment on the samples. The thickness of annealed samples was measured by observing the cross section of the films. Bright field images in scanning transmission electron microscopy (STEM) were used to analyze the microstructure of films. The crystalline phases present in the films were determined by grazing incidende x-ray diffraction (GIXRD) patterns in a PANalytical X-Pert system using Cu Kα radiation (λ = 0.15418 nm) at 40 keV and 35 mA. The grazing incidence angle was fixed at 0.5° and scanning angle 2θ was varied from 20° to 85° at 0.1° min-1 step. AFM images were obtained using a multimode Nanoscope IVa SPM device (Veeco) recorded in tapping mode using commercial n-type standard silicon cantilever with a spring constant of 20 N/m. Surface root mean square (RMS) roughness was estimated from measurements of several atomic force microscopy (AFM) images on the films.
On the other hand, the optical properties in the range between 250 nm and 1100 nm corresponding to the energy range from 1 eV to 5 eV were determined from specular reflectance (at an incidence angle less than 7° from the normal to the surface) spectra employing a UV-Vis-NIR double beam Perkin Elmer lambda 35 spectrophotometer. From these measurements, the absorption coefficient as a function of photon energy of films deposited on silicon substrates was obtained.

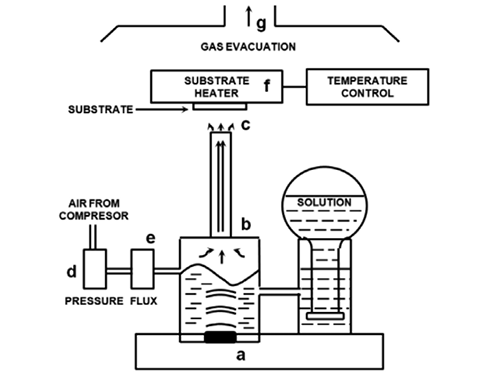

Figure 1. Simplified scheme of the deposition system used for the growth of LiNbO 3 thin films in the present work.
From bottom to top: a) ultrasonic
nebulizer; b) spraying chamber; c) fixed nozzle; d) pressure regulator;
e) flow meter; f) overhead hot-plate; g) gas evacuation.
Source: Authors own elaboration.
Figure 1. Simplified scheme of the deposition system used for the growth of LiNbO
3 thin films in the present work.
From bottom to top: a) ultrasonic
nebulizer; b) spraying chamber; c) fixed nozzle; d) pressure regulator;
e) flow meter; f) overhead hot-plate; g) gas evacuation.
Source: Authors own elaboration.
Close

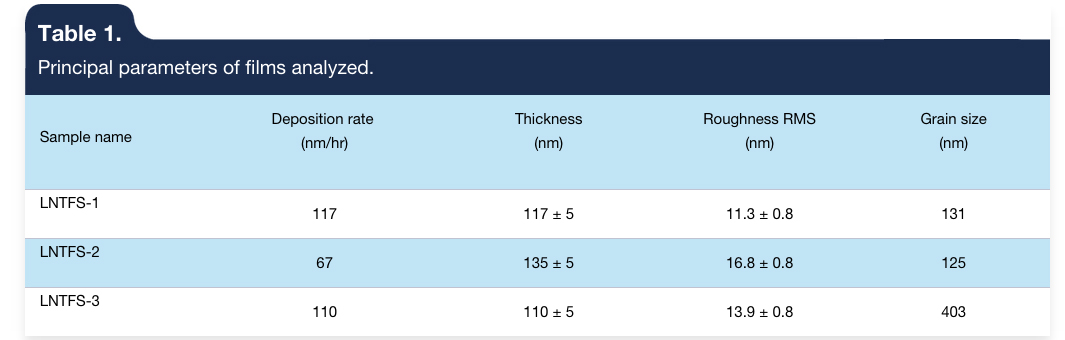

A large number of films were prepared by the AACVD method onto silicon (0 0 1) substrates 1.5 cm2 × 1.5 cm2 in order to determine the optimal deposition conditions. The best samples were obtained at 653 K using a deposition time of about 1 h. After deposition, the films were annealed during 5 h at 900 K, determined as the optimum annealing temperature because at this temperature the crystallinity of samples was remarkably increased. In general the films were polycrystalline, uniform and non-light scattering. Some micrographs of representative samples deposited on silicon substrates are shown below.
Figure 2(a) shows a secondary electron SEM micrograph of the surface morphology, and Figure 2(b) shows a backscattered electron SEM micrograph of the cross section of sample LNTFS-1 deposited on silicon (0 0 1) substrate after a heat treatment at 900 K. The film was smooth, dense and firmly adhered to the substrate. The average grain size of this sample was equal to 131 nm which was determined from a statistical study of several SEM micrographs of the surface of the film. As it can be seen from Figure 2(b) the thickness of this film was around 117 nm.
The polycrystalline nature of sample LNTFS-1 was determined from its GIXRD patterns showed in figure 3(a). The crystalline structure of the film corresponded to LiNbO3 hexagonal phase (Joint Committee on Powder Diffraction Standards, Powder Diffraction File, International Center for Diffraction Data, Swarthmore, PA, 2006. card 01-070-8451). The roughness of film LNTFS-1 was measured by AFM in tapping mode. The RMS value of roughness of film LNTFS-1 was 11.3 nm ± 0.8 nm which was determined from several AFM micrographs such as the one showed in figure 3(b) plotted with WSXM software (Horcas, Fernández, Gómez-Rodríguez, Colchero, Gómez-Herrero & Baro, 2007). In spite of the film was not epitaxial, due to the synthesis method, we consider that it is smooth enough to be employed in optical waveguide applications, since its roughness is very low compared to the wavelength of the radiation. GIXRD results were confirmed by high resolution transmission electron microscopy studies. Figure 4(a) shows a bright field high resolution TEM image near the interface between Si substrate and LiNbO3 film. In the central region of this figure a sharp interface of amorphous native silicon oxide is shown. The lattice fringes measurement in Figure 4(a) was consistent with the interplanar distance of the (0 1 2) plane of lithium niobate hexagonal phase. Additionally, the analyses of the selected area electron diffraction patterns also confirm the existence of the hexagonal phase as shown in Figure 4(b).
Figure 2. a) Secondary electron SEM micrograph of surface; and b) backscattered
electron SEM micrograph of cross section of LiNbO3 (LNTFS-1) based
thin film deposited at 653 K onto a silicon substrate with a deposition
time of 1 h, after heat treatment at 900 K during 5 h.
Source: Authors own elaboration.

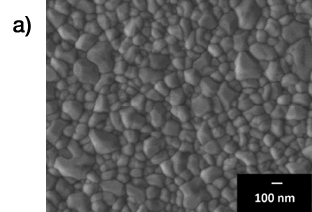

Figure 2. a) Secondary electron SEM micrograph of surface.
Fuente: Source: Authors own elaboration. Close

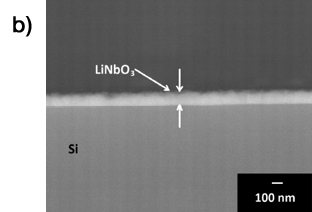

Figura 2. b) backscattered electron SEM micrograph of cross section of LiNbO3 (LNTFS-1)
based thin film deposited at 653 K onto a silicon substrate with a deposition time of 1 h, after heat treatment at 900 K during 5 h.
Source: Authors own elaboration. Close

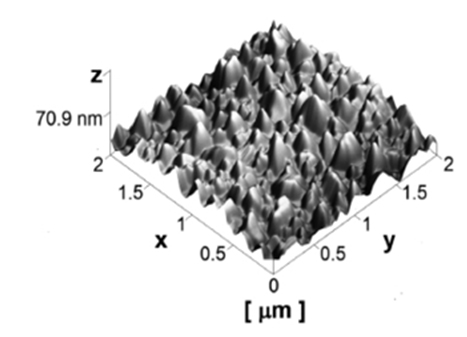

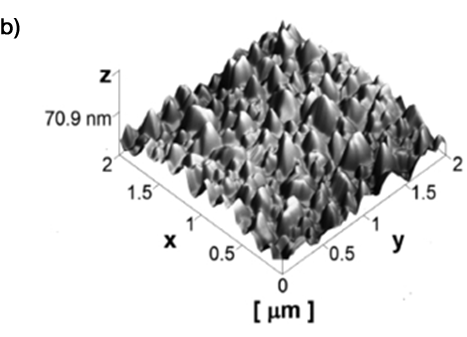

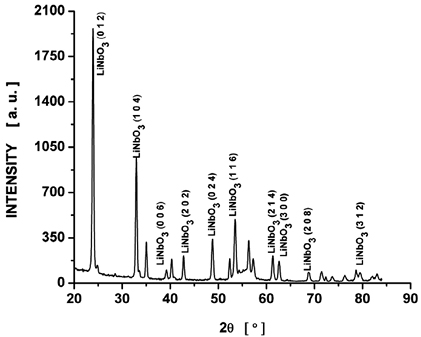

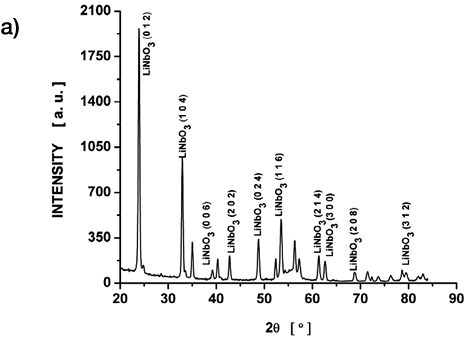

Figure 3. a) GIXRD pattern; and b) atomic force micrograph of LiNbO3 (LNTFS-1)
based film deposited at 653 K onto a silicon substrate (0 0 1) with a
deposition time of 1 h, after heat treatment at 900 K during 5 h. Scale
x → 0.5 μm per graduation; y → 0.5 μm per graduation; z → 73.1 nm
per graduation.
Source: Authors own elaboration.
Figure 3. a) GIXRD pattern; and b) atomic force micrograph of LiNbO3 (LNTFS-1)
based film deposited at 653 K onto a silicon substrate (0 0 1) with a
deposition time of 1 h, after heat treatment at 900 K during 5 h. Scale
x → 0.5 μm per graduation; y → 0.5 μm per graduation; z → 73.1 nm
per graduation.
Source: Authors own elaboration. Close
Figure 3. a) GIXRD pattern; and b) atomic force micrograph of LiNbO3 (LNTFS-1)
based film deposited at 653 K onto a silicon substrate (0 0 1) with a
deposition time of 1 h, after heat treatment at 900 K during 5 h. Scale
x → 0.5 μm per graduation; y → 0.5 μm per graduation; z → 73.1 nm
per graduation.
Source: Authors own elaboration. Close
Figure 4. a) Bright field high resolution image of the interface between Si substrate and LNTFS-1 film; b) selected area electron diffraction pattern showing the hexagonal phase of LiNbO3 film LNTFS-1.
Source: Authors own elaboration.
Figure 4. a) Bright field high resolution image of the interface between Si substrate and LNTFS-1 film.
Source: Authors own elaboration. Close
Figure 4. b) selected area electron diffraction pattern showing the hexagonal phase of LiNbO3 film LNTFS-1.
Source: Authors own elaboration. Close
Optical properties
In order to determine the optical properties of the thin films deposited on silicon substrates, the reflectance spectra of optimized films were obtained. These measurements were carried out at near normal incidence and room temperature.
Figure 5(a) shows the variation of measured optical reflectance as a function of photon energy in the range from 1 eV to 4.13 eV (300 nm to 1100 nm) of sample LNTFS-1 deposited on silicon substrate. From this measurement, the refractive index n of sample LNTFS-1 as a function of wavelength λ of radiation was determined using TFcalc 3.5.14 software, assuming known data of the refractive index and the extinction coefficient of the substrate:
Figure 5(b) shows the magnitude of the ordinary refractive index, given by equation (1), of sample LNTFS-1 deposited onto silicon substrate plotted as a function of photon energy. It was observed that the magnitude of the refractive index (~1.995) of the sample LNTFS-1 was slightly lower than the value reported in the literature for thin films and bulk samples of LiNb3 at 633 nm wavelength corresponding to a photon energy of 1.96 eV (Kirkby & Florea, 2002; Takahashi et al., 2004; Wang et al., 2007). As shown in Figure 5(b), the refractive index of sample LNTFS-1 has the expected behavior showing a continuous increase as the photon energy increases. The slightly lower value of the refractive index can be attributed to the marginally lower density of the film compared to that of dense bulk samples.
Next, the extinction coefficient k was calculated using its well-known relation with the refractive index n, and the reflectance R at normal incidence, given by:
`k = ((R(n+1)^2-(n-1)^2)/(1-R))^½ .` (2)
Finally, the absorption coefficient was calculated from the extinction coefficient obtained from the equation (2). Figure 6 shows the absorption coefficient as a function of photon energy in the range from 1 eV to 4.13 eV (300 nm to 1100 nm) of sample LNTFS-1 deposited on silicon substrate.

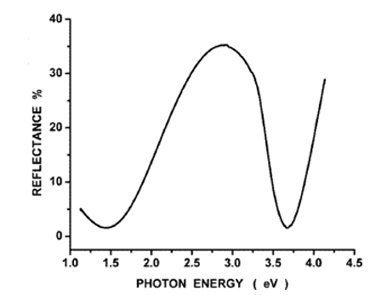

Figure 5. a) Reflectance as a function of photon energy of LiNbO3 (LNTFS-1) thin film deposited at 653 K on a silicon substrate (0 0 1) with a deposition time of 1 h, after heat treatment at 900 K during 5 h.
Source: Authors own elaboration.
Figure 5. a) Reflectance as a function of photon energy of LiNbO3 (LNTFS-1) thin film deposited at 653 K on a silicon substrate (0 0 1) with a deposition time of 1 h, after heat treatment at 900 K during 5 h.
Source: Authors own elaboration. Close

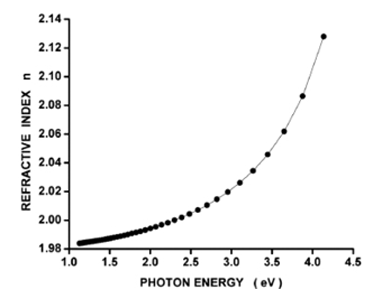

Figure 5. b) ordinary refractive index •-•-• as a function of photon energy of LiNbO3 (LNTFS-1) thin film.
Source: Authors own elaboration.
Figure 5. b) ordinary refractive index •-•-• as a function of photon energy of LiNbO3 (LNTFS-1) thin film.
Source: Authors own elaboration. Close

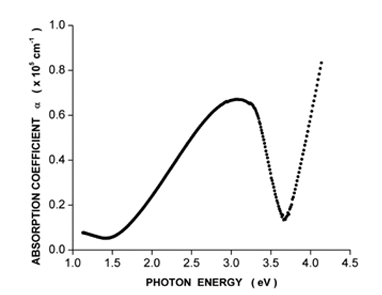

Figure 6. Absorption coefficient α as a function of photon energy of thin film LNTFS-1.
Source: Authors own elaboration.
Figure 4. a) Bright field high resolution image of the interface between Si substrate and LNTFS-1 film.
Source: Authors own elaboration. Close
CONCLUSIONS
EHigh uniformity, non-light scattering and highly transparent polycrystalline LiNbO3 based thin films were deposited by the AACVD method onto silicon substrates. The optimum substrate temperature to obtain high quality films with high uniformity and a typical thickness around a few hundred nanometers was 653 K. The deposition rates attained with our deposition setup were around 100 nm•h. The crystallinity of the deposited films increased remarkably after the five hours heat treatment at a temperature of 900 K. The LiNbO3 films were smooth, dense and firmly adhered to the substrate. Nevertheless, in spite of the non-epitaxial method used to synthesize the films we think that they are smooth enough to be employed in optical waveguide applications, since roughness is very low (~10 nm) compared to the wavelength of the radiation.
ACKNOWLEDGEMENTS
The authors want to thank W. Antúnez-Flores, O. Solís-Canto, C. Ornelas-Gutiérrez, C. Leyva-Porras, E. Ledezma-Sillas, and Laboratorio Nacional de Nanotecnología, for experimental assistance.
